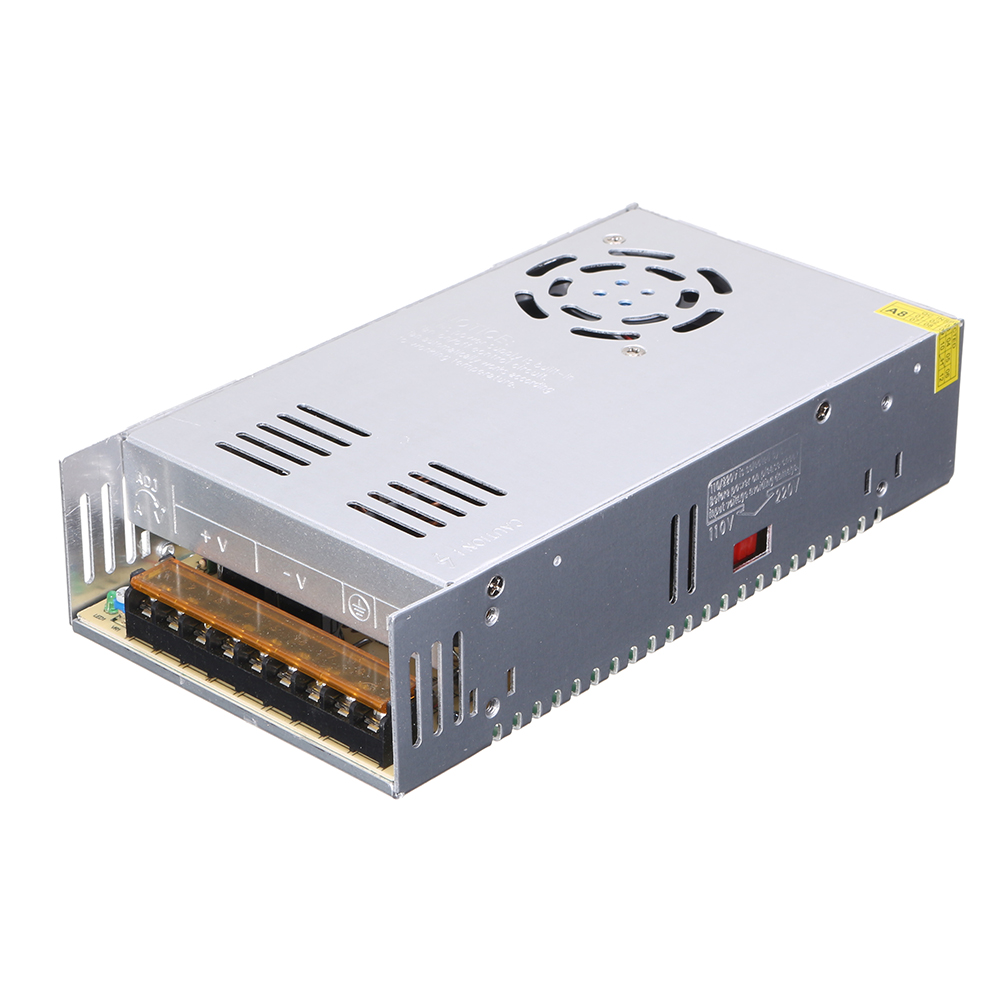

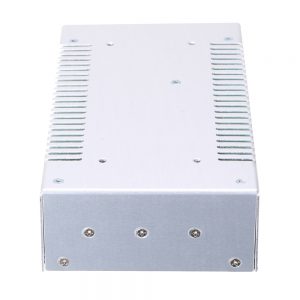

AC110V/220V to DC12V 40A 480W Switching Power Supply With Fan Size 215*115*50mm
Original price was: $37.99.$30.39Current price is: $30.39.
AC110V/220V to DC12V 40A 480W Switching Power Supply With Fan Size 215*115*50mm
70 in stock
Technical Parameters:
| Model | S-500-12 |
| AC input voltage range | 110/220VAC |
| Input current | 0.25A/115V 0.5A/230V |
| AC impulse current | Cold-start current 20.5A/115V 20/230V |
| DC output voltage | 12V |
| DC output power | 500W |
| Rated output current | 40A |
| Output voltage error | ±1% |
| Efficiency | 85% |
| Wave and noise | 150mVp-p |
| Inlet stability | ±0.5% |
| Load stability | ±0.5% |
| Leakage current | <0.5mA/240VAC |
| Overload protection | 105% – 150% rated power, automatically recovery |
| Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Cooling method | Fan assisted cooling |
| Working temperature and humidity | – 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
| Store temperature and humidity | – 30 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
| Safety standards | CE(EMC+LVD), FCC. |
| Dimension | 215x115x50mm |
| Weight | 0.85kg |
Feature:
1. International AC input range
2. High efficiency, low working temperature
3. Short circuit,overload,over-current protection
4. 100% fully load burn-in test
5. Built-in EMI filter, low ripple noise
6. Low cost, high reliability
7. CE and FCC approval
Specification:
1. LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency.
2. Product interference, through the EMC testing, ripple ≤ 50MV.
3. Efficiency above 80%, temperature ≤ 25 °C.
4. LED switching power supply with overvoltage protection, short circuit protection, overload protection.
5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.
6. Products have the anti-interference ensures long-life LED strips, reducing the LED lighting decline.
Package includes:
1 x Power supply
| Weight | 0.835 kg |
|---|
