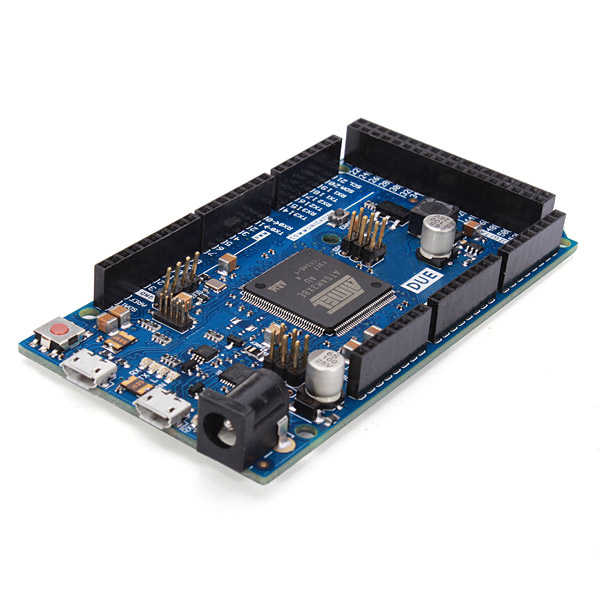

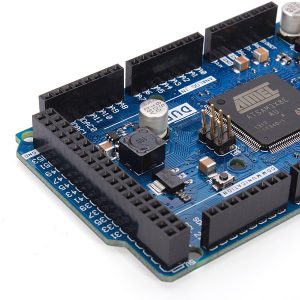

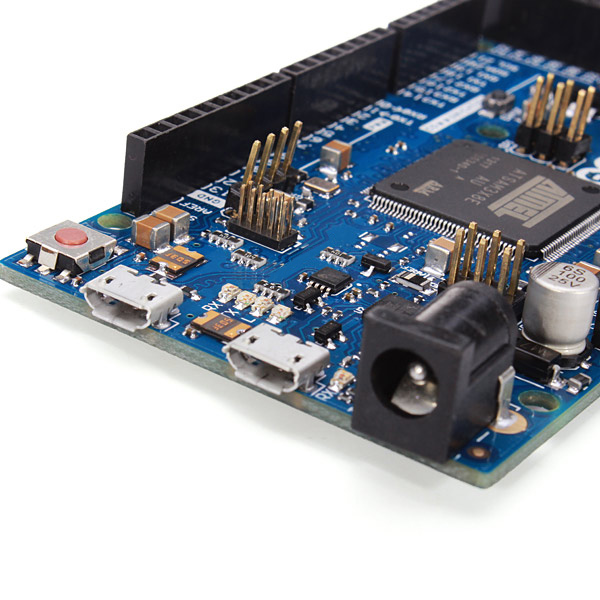

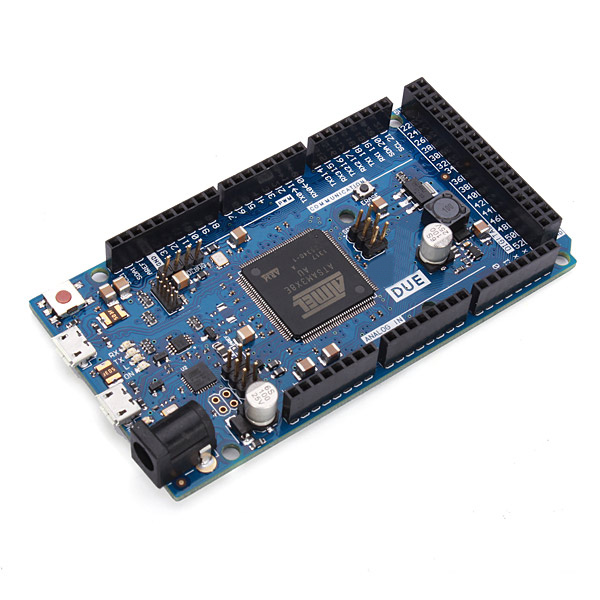

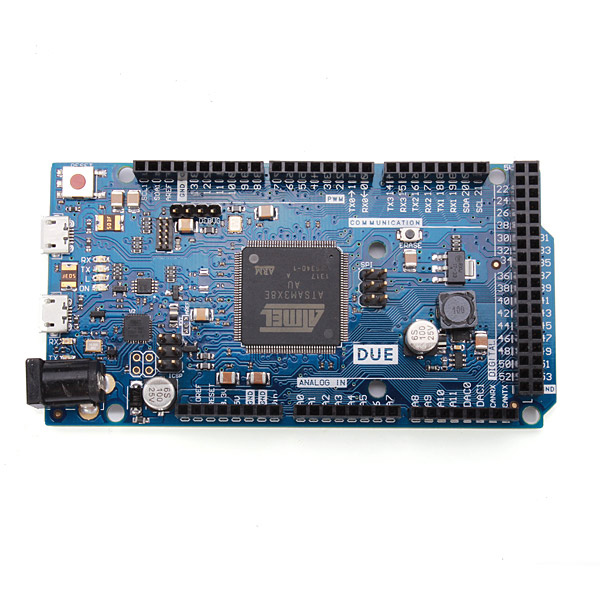

DUE R3 32 Bit ARM Module Development Board With USB Cable Geekcreit for Arduino – products that work with official Arduino boards

Description:

The Due is a microcontroller board based on the SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first board based on a 32-bit ARM core microcontroller. It has 54 digital input / output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all shields that work at 3.3V and are compliant with the 1.0 pinout.

The SAM3X has 512KB (2 blocks of 256KB) of flash memory for storing code. The bootloader is preburned in factory and is stored in a dedicated ROM memory. The available SRAM is 96KB in two contiguous bank of 64KB and 32KB. All the available memory (Flash, RAM and ROM) can be accessed directly as a flat addressing space.

It is possible to erase the Flash memory of the SAM3X with the onboard erase button. This will remove the currently loaded sketch from the MCU. To erase, press and hold the Erase button for a few seconds while the board is powered.

Feature:

The Due has a 32-bit ARM core that can outperform typical 8-bit microcontroller boards. The most significant differences are:

A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
CPU clock at 84Mhz
96KBytes of SRAM
512KBytes of flash memory for code
A DMA controller, that can relieve the CPU from doing memory intensive tasks

Warning:

Unlike other boards, the Due board runs at 3.3V. The maximum voltage that the I / O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I / O pin could damage the board.

Specification:

Microcontroller: AT91SAM3X8E
Operating voltage: 3.3V
Input voltage(recommended): 7V – 12V
Input voltage(limits): 6V – 16V
Digital I / O pins: 54(of which 12 provide PWM output)
Analog input pins: 12
Analog outputs pins: 2(DAC)
Total DC output current on all I / O lines: 130mA
DC current for 3.3V pin: 800mA
DC current for 5V pin: 800mA
Flash memory: 512KB all available for the user applications
SRAM: 96KB(two banks: 64KB and 32KB)
Clock speed: 84MHz

Package included:

1 x compatible DUE R3
1 x USB cable

,
