RIDEN® RD6012 RD6012W USB WiFi DC-DC Voltage Current Step Down Power Supply Module Buck Voltage Converter Voltmeter 60V 12A

Support Power Supply: (Product ID: 1689167)

Support S12A Case: (Product ID: 1687955)

Technical Parameter:

Model	RD6006	RD6006-W	RD6012	RD6012-W
Input voltage range	6-70.00V
Output voltage range	0-60.00V
Output current range	0-6.000A		0-12.00A
Output power range	0-360W		0-720W
Input voltage measurement resolution	0.01V
Output voltage setting measurement resolution	0.01V
Output current setting measurement resolution	0.001A		0.01A
Battery voltage measurement resolution	0.01V
Input voltage measurement accuracy	±(1%+5 digits)
Output voltage accuracy between setting and measurement	±(0.3%+3 digits)
Output current accuracy between setting and measurement	±(0.5%+5 digits)
Battery voltage measurement accuracy	±(0.5%+3 digits)
Automatic cut off current value when charging	10mA		100mA
Output ripple typical	100mV VPP		250mV VPP@6A
Working temperature range	-10℃~40℃
External sensor Temperature detection range:	-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy	±3℃/±6℉
Constant voltage mode response time	2ms（0.1A-5A Load）		2ms（0.1A-5A Load）
Constant voltage mode load regulation	±(0.1%+2 digits)
Constant current mode load regulation	±(0.1%+3 digits)
Capacity measurement range	0-9999.99Ah
Energy measurement range	0-9999.99Wh
Capacity and energy statistical error	±2％
Buck working mode	Voltage drop >1V and >10%
Cooling fan start condition	Output voltage >40V  or Output current >4A  or System temperature >45℃		Output current>8A or System temperature>45℃
Cooling fan shut down condition when working	Output voltage <40V  and Output current <3.9A  and System temperature<45℃		Output current <7.9A and System temperature <45℃
Over temperature protection	System temperature >80℃
Screen brightness setting	0-5(6 level in total)
Screen	2.4 inch color HD display
Weight(with package)	About 607g		About 642g
Product dimension	167*81*65mm
Support USB communication	YES
Support WiFi communication	No	yes	No	yes

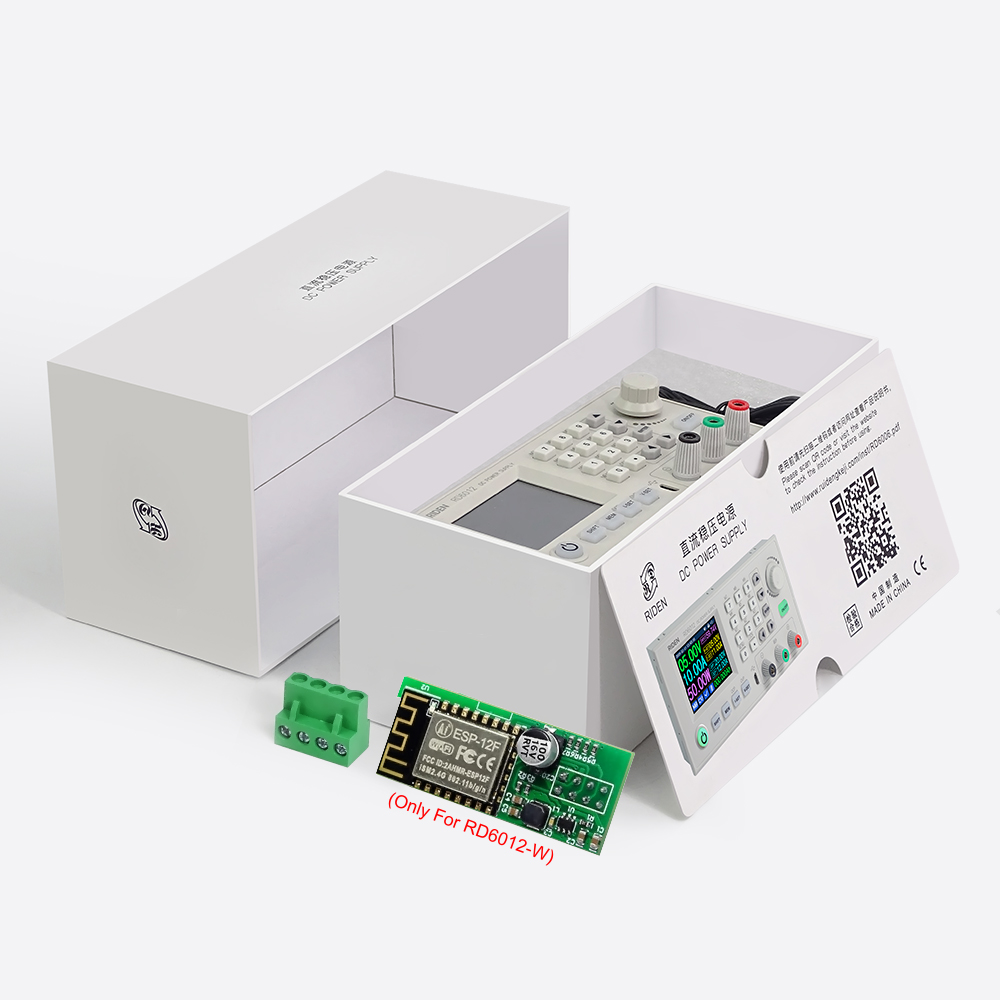

Package includes:

1 x Power module

Note before buying:

1. RD6012 series has two versions: RD6012 and  RD6012-W, RD6012-W have WIFI board, RD6012 doesn’t have. RD6012-W can use the WIFI board to connect APP, also use USB micro cable to connect PC software. RD6012 doesn’t have a WIFI board, it only supports PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.

Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support,  and we will decide whether to keep this function based on customer feedback.

2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. For APP and PC software, because there may be incompatibilities problems, please download first before buying, if you can download and install, you can make the order, or else stop buying. If you don’t test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund.

3. For the S12A case, not containing any power supply. some picture show installation finished by RD6012, switch power and case.

For the S12A case, it is just case, not containing any power supply, but it is suitable for RD6012/RD6012W and AC-DC 800w 70V switch power supply, you can buy them separately to assemble easy.

Assemble instruction in English: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing

All RD6012/RD6021W instruction and case installation instruction download Link:

1. RD6012(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:

A: Main download llink:  https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing

B: Mediafire: http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012

C: Back up download link: http://www.ruidengkeji.com/rdupdate/software/RidenPower/RidenPowerSupply_V1.0.0.6.rar

2. Android APP:   download at file link https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing, Support android 5.0 -android 10.0

IOS APP download: Search RdPower to download, support IOS10.0-IOS13.4 System

3.  RD6012/RD6012W Operation instruction video(similar to RD6006): https://youtu.be/fn6ROhGrLtI
